SPMd Example (Multiple Condition)
By Wen-Lin Luo, Hui Zhang & Thomas Nichols
SPMd is a toolbox for SPM which you to establish the validity of inferences in fMRI modeling through diagnosis of linear model assumptions, and to characterize fMRI signal and artifacts through exploratory data analysis. It allows for models:
There are two restrictions for the use of SPMd
The reference is: Luo, W-L and Nichols T. E. Diagnosis and Exploration of Massively Univariate fMRI Models. NeuroImage,19:1014-1032, 2003.
In this section, we analyze a single-subject block design fMRI data with the SPMd software.
Note: We assume you already have a model for this dataset, which users need to run the SPM analysis for the data before using SPMd! We also assume you have already had realignment file (*.txt or *.dat) for the dataset!
The aim of web page is:
The data is a contest data. The contest is the result of an idea from the madic group in Orsay. The description of the data is found when you click this link.
You need to download SPMd at this link before downloading the SPMd software.
If you only have SPM2, please type
If you have already analyzed some data, please type
First click onModel summary (2) Scan summary (3) Scan detail.
(1) The following interface will appear after clicking on "Model Summary"
After clicking "GO!", a pop-up window will let you choose the SPM.mat file that you explore the data and diagnose the statistical analysis.
(2) The following interface will appear after clicking on "Scan Summary"
Before run "Scan Summary", the users run SPM and "Model Summary" first. After clicking "GO!", a pop-up window will let you choose the realignment file that you explore the data. If there is realignment file in the current directory, the software will do computing.

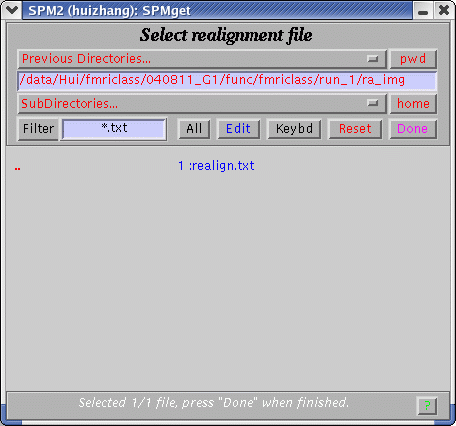

If choosing "No", in the "Scan Summary" window, the time series of realignment parameters will not be shown. If choosing "Yes", a pop-up window will let you specify the realignment file
(3) The following interface will appear after clicking on "Scan Detail"
A pop-up window will let you specify a directory to save residuals' images.
This is a time-consuming section. It will cost 20~30 minutes or based on the users' computer system to finish all computing.
Second click on

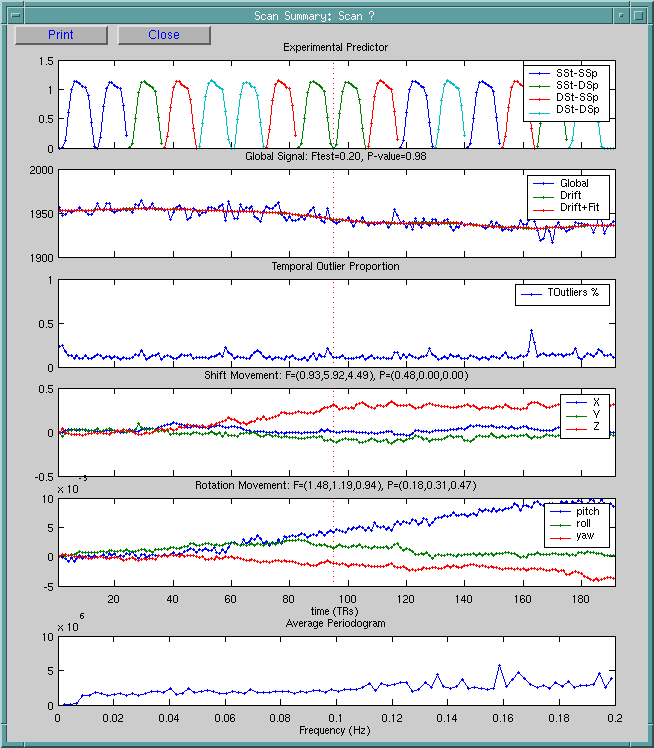

(1) Scan Summary

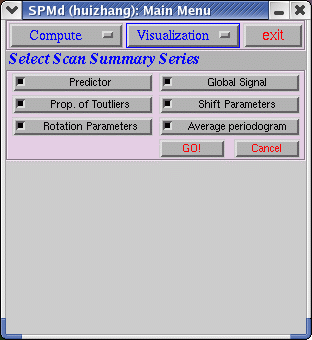

Select summaries the users are interested in, or just click "GO!" get them all.
The user can specify the scan number by clicking on specified point in any one of the plots.

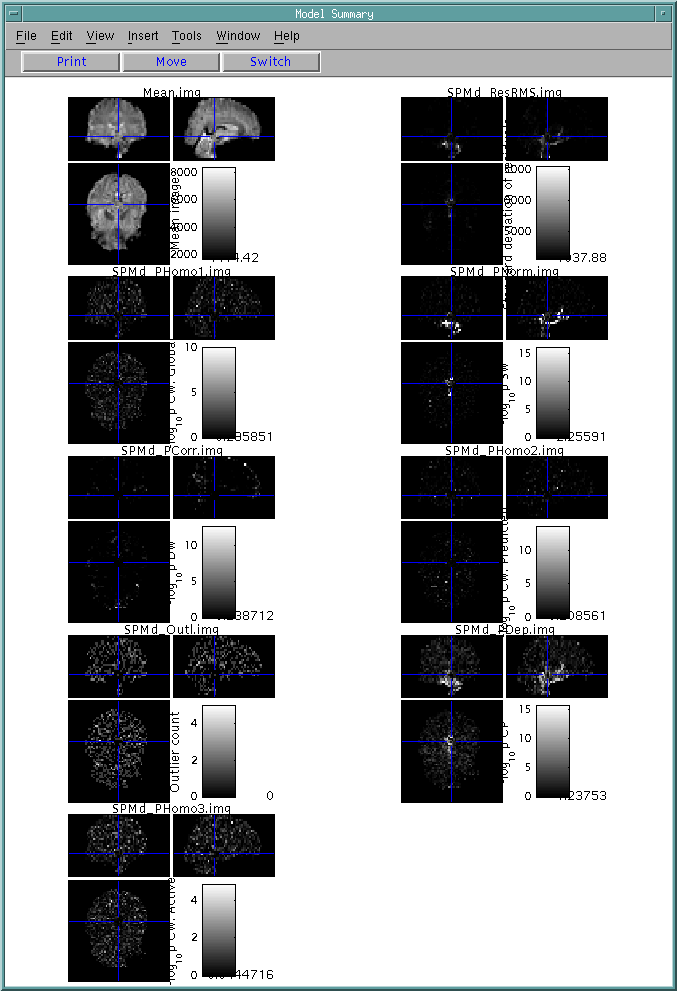

(2) Model Summary

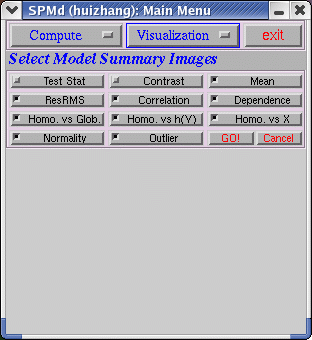

The users have to DESELECT "Test Stat" and "Contrast" if there are not contrast and t images in the directory, otherwise, the software will crash. After selecting summaries the users are interested in, or just click "GO!" get them all.
(3) Model detail
For an interesting voxel, right click that voxel in "Model Summary" or click "Model details" button inside the "Visualization" menu, the following figure is the result.
Before calling model detail, there should at least one spatial window opened, so that the spatial position could be specified. If both spatial window exist, this function will automatically select the spatial position in the most recently clicked spatial window.

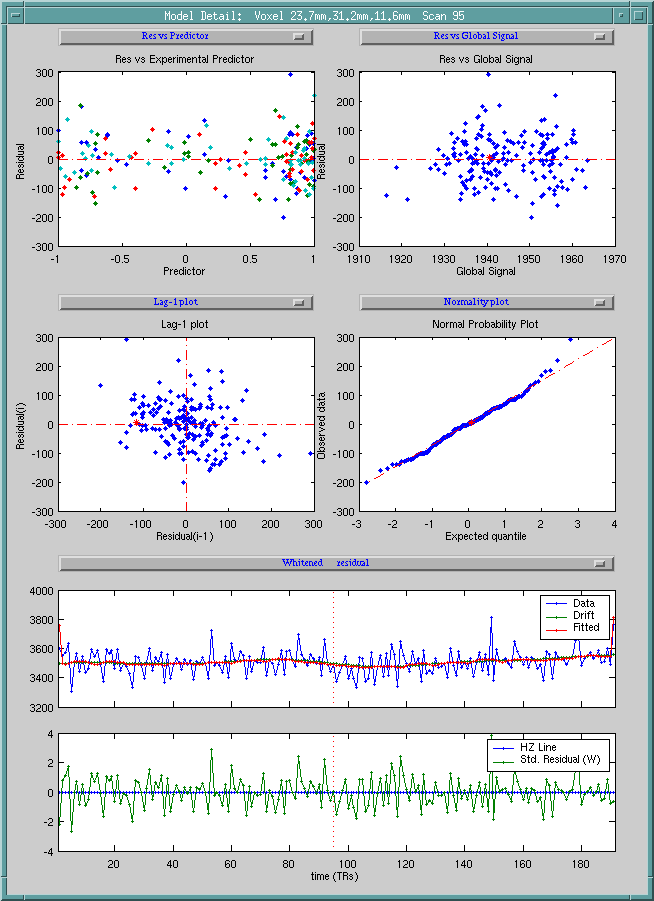

This figure includes 6 diagnostic plots:
Residual vs experimental predictor
Residual vs global signal
Absolute value of residual vs. experimental predictor
Absolute value of residual vs. global signal
Lag-1 serial plot
and 2 time series plots:
Raw data, drift, and fitted data
Whitened data, drift and fitted data
Standard residual vs horizontal line
Users can select any point in one plot, the corresponding point in other plots will be selected.
(4) Scan Detail

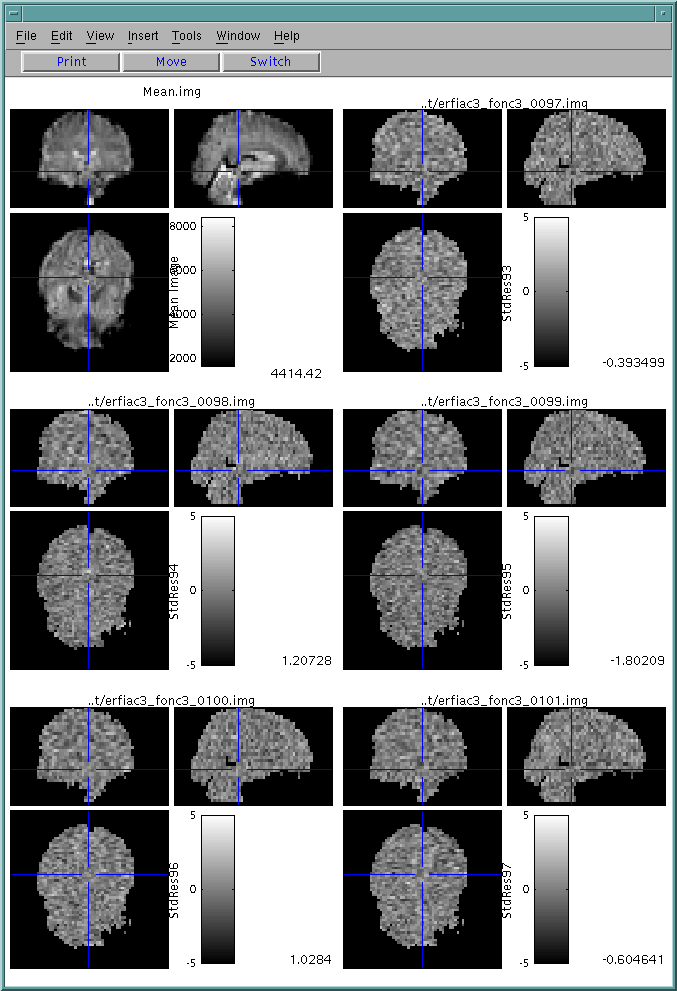

For an interesting time point, click "Scan Detail". This will bring up a sequence of studentized residual images just before, during and after the point of interest. (If you did not create residual images, you will get a warning and will see the raw data images instead).
Before calling scan detail, scan summary window should be opened.
