SPMd Example

By Wen-Lin Luo, Hui Zhang & Thomas Nichols


Introduction Example Data Manual


SPMd is a toolbox for SPM which you to establish the validity of inferences in fMRI modeling through diagnosis of linear model assumptions, and to characterize fMRI signal and artifacts through exploratory data analysis. It allows for models:

There is essentially one key restriction for SPMd with SPM2 (for historical reference, SPM99 limitations are also listed):

The reference is: Luo, W-L and Nichols T. E. Diagnosis and Exploration of Massively Univariate fMRI Models. NeuroImage,19:1014-1032, 2003.

In this section, we analyze a single-subject block design fMRI data with the SPMd software.

Note: We assume you already have a model for this dataset, which users need to run the SPM analysis for the data before using SPMd! We also assume you have already had realignment file (*.txt or *.dat) for the dataset!

The aim of web page is:


The Example Data

This data is from a study on faces and houses repetition effects in implicit and explicit memory tests.

In this study, one volunteer participated in the experiment. Faces of different male and female faces and different style houses were presented to the subjects for 2s (?). If the picture is different than the previous one, click the thumb on the check board, otherwise click index finger on the check board . The subject was scanned during the experiment and his or her fMRI images were obtained.


You need to register at this page before downloading the SPMd software.

> SPMsel(2)
> spmd
If you only have SPM2, please type

SPMd is split up into two components (1) Compute (2) Visualization.

SPMd Three components Page


First click on

There are three choices in Compute, (1) Model summary (2) Scan summary (3) Scan detail.

(1) The following interface will appear after clicking on "Model Summary"


Select Model Summary Images

After clicking "GO!", a pop-up window will let you choose the SPM.mat file that you explore the data and diagnose the statistical analysis.

...to top

(2) The following interface will appear after clicking on "Scan Summary"

Before run "Scan Summary", the users run SPM and "Model Summary" first. After clicking "GO!", a pop-up window will let you choose the realignment file that you explore the data. If there is realignment file in the current directory, the software will do computing.

If choosing "No", in the "Scan Summary" window, the time series of realignment parameters will not be shown. If choosing "Yes", a pop-up window will let you specify the realignment file


...to top

(3) The following interface will appear after clicking on "Scan Detail"

A pop-up window will let you specify a directory to save residuals' images.

This is a time-consuming section. It will cost 20 minutes or based on the users' computer system to finish all computing.

...to top

Second click on


There are four choices in Visualization, (1) Scan Summary (2) Model Summary (3) Model Detail (4) Scan Detail.

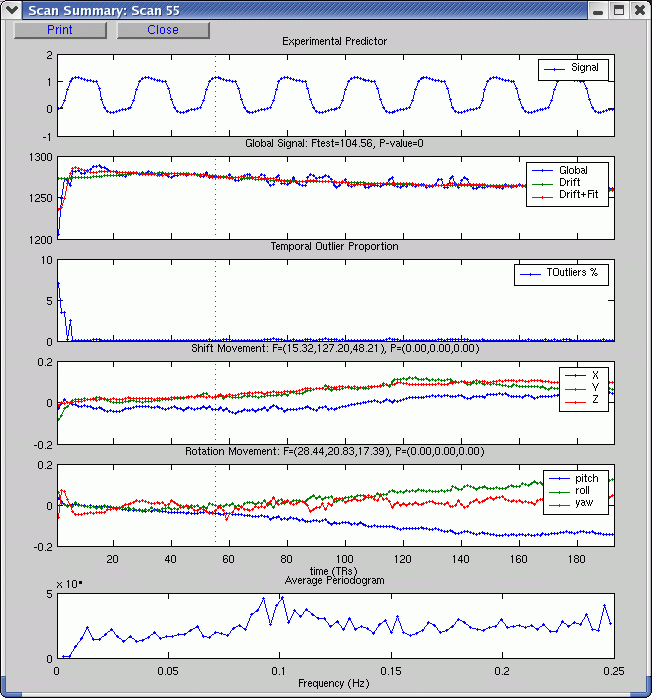

(1) Scan Summary

Select summaries the users are interested in, or just click "GO!" get them all. This is an example for selecting all.

The user can specify the scan number by clicking on specified point in the top 5 plots.

...to top

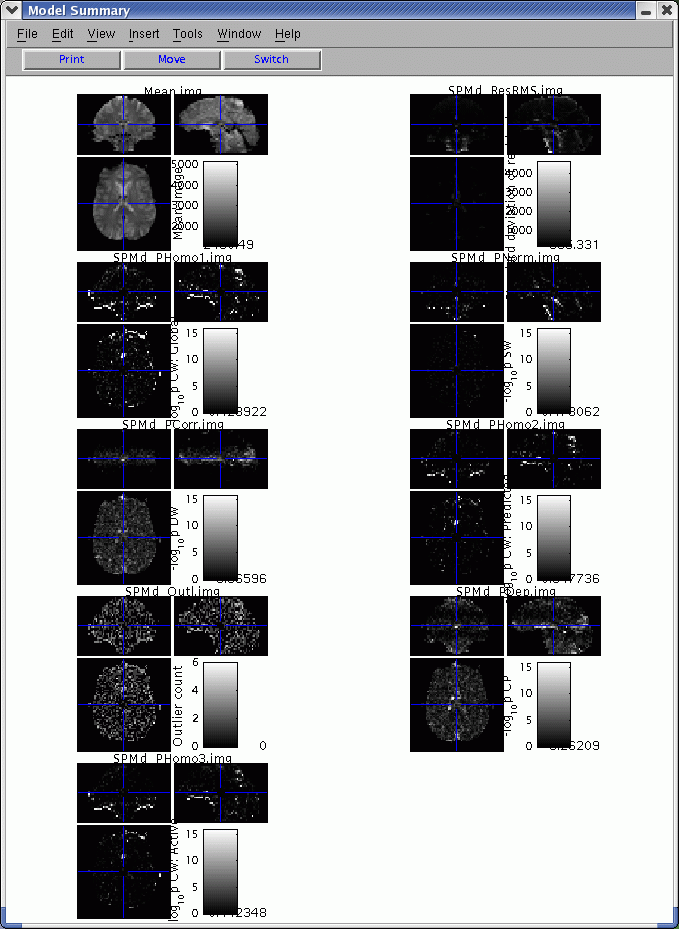

(2) Model Summary


The users have to DESELECT "Test Stat" and "Contrast" if there are not contrast and t images in the directory, otherwise, the software will crash. After selecting summaries the users are interested in, or just click "GO!" get them all. This is an example for selecting all except "Test Stat" and "Contrast".

(3) Model detail

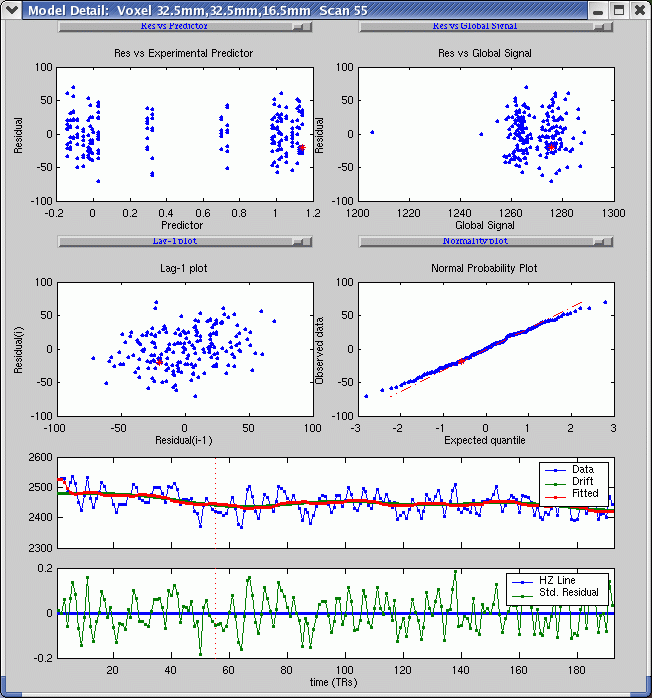

For an interesting voxel, right click that voxel in "Model Summary" or click "Model details" button inside the "Visualization" menu, the following figure is the result.

Before calling model detail, there should at least one spatial window opened, so that the spatial position could be specified. If both spatial window exist, this function will automatically select the spatial position in the most recently clicked spatial window.

This figure includes 6 diagnostic plots:

  • Residual vs experimental predictor

  • Residual vs global signal

  • Absolute value of residual vs. experimental predictor

  • Absolute value of residual vs. global signal

  • Lag-1 serial plot

  • Normality plot

and 2 time series plots:

  • Raw data, drift, and fitted data

  • Standard residual vs horizontal line

Users can select any point in one plot, the corresponding point in other plots will be selected.

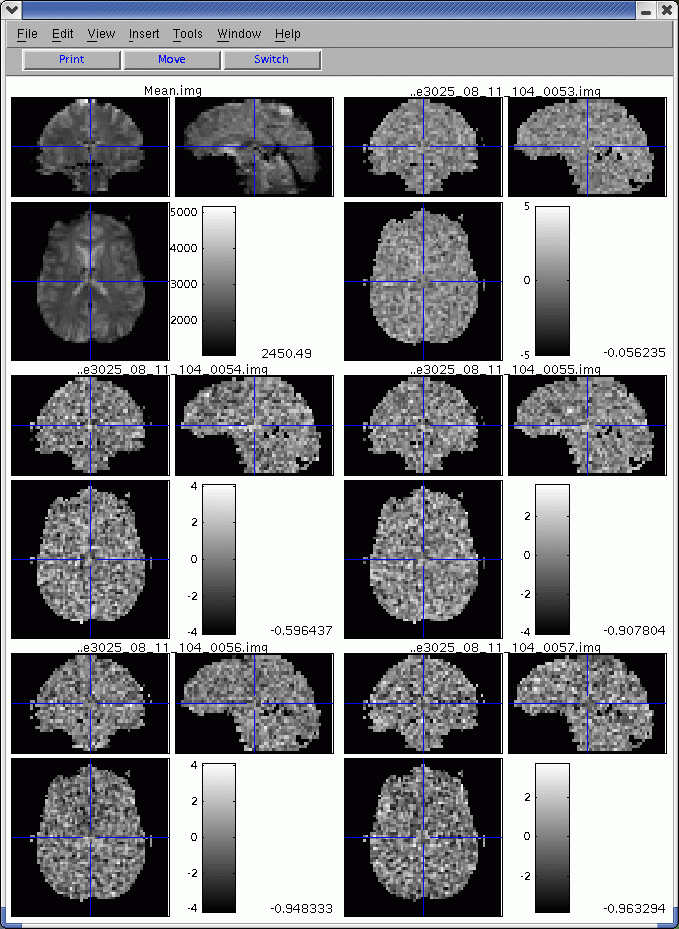

(4) Scan Detail

For an interesting time point, click "Scan Detail". This will bring up the residual images just before, during and after the point of interest. (If you did not create residual images, you will get a warning and will see the raw data images instead).

Before calling scan detail, scan summary window should be opened.

...to top


We are looking forward to your feedback... don't be shy! Email us both at spmd-authors@umich.edu.
